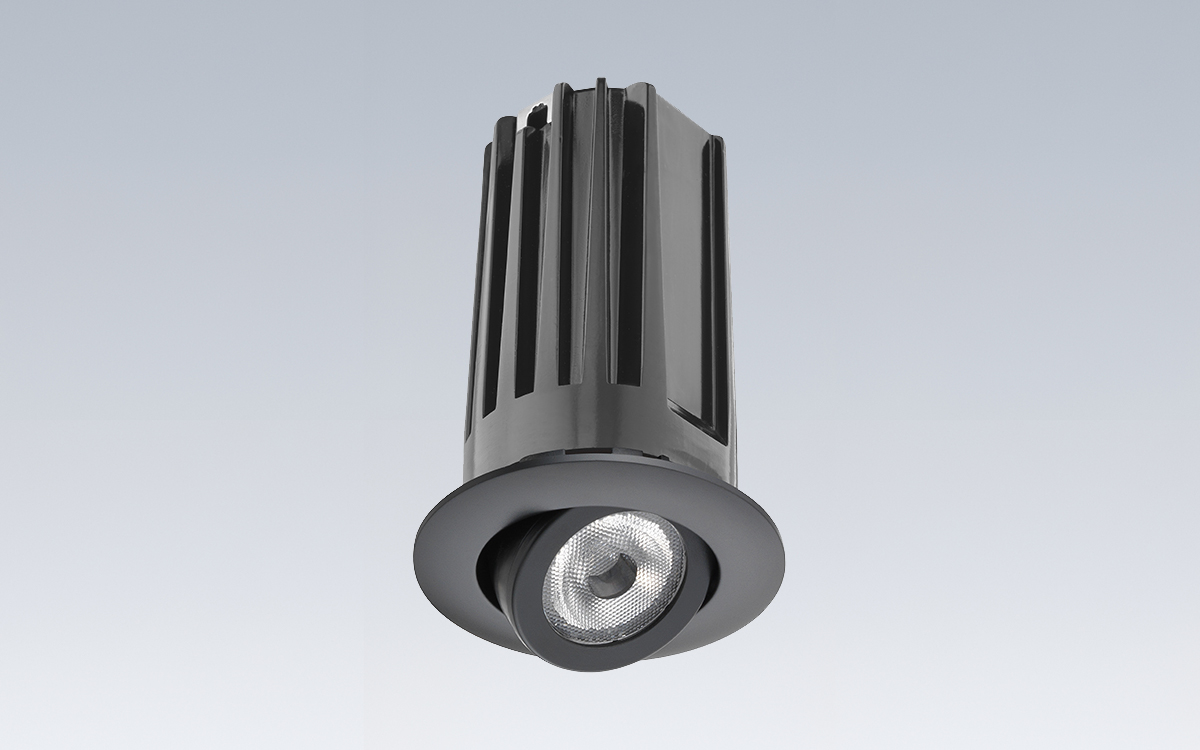

The 2-inch aperture adjustable recessed LED downlight is IC rated for both insulated and non-insulated applications and approved for the City of Chicago Environmental Air (CCEA), commonly referred to as “Chicago Plenum.” This fixture produces up to 1000 lumens, with optical distributions approximating a 75W MR16 halogen lamp, while consuming as little as 7.5 to 11.5 watts. With a rated life of 50,000 hours and a five-year limited warranty on LED components, it offers long-term reliability for both residential and commercial applications.
The LED light engine delivers exceptional color consistency within a 3-step MacAdam ellipse, with color temperatures available in 2700K, 3000K, 3500K, and 4000K, and a minimum of 80 or 90 CRI. Modular optics include field-interchangeable 18° spot, 24° narrow flood, or 40° flood beam patterns, while the gimbal allows up to 35° vertical aiming and 360° horizontal rotation for precise accent or task lighting. The trim design features a die-cast beveled knife-edge ring for a clean ceiling interface, offered in white, black, satin nickel, or brushed bronze, with matching die-cast baffles for a uniform appearance.
The driver options include a dedicated 120V driver or a universal voltage (MVOLT) driver supporting input voltages from 120 to 277 volts AC at 50/60Hz, with a power factor greater than 0.9. The 120V driver is dimmable with most incandescent, magnetic low voltage, and electronic low voltage dimmers, while the MVOLT driver works with most 0–10V protocol dimmers. This downlight maintains consistent color temperature throughout the dimming range. Life is rated for 50,000 hours at 70% lumen maintenance, and the fixture meets high-efficacy requirements of California Title 24 JA8-2019, energy code air leakage standards per ASTM E283, and is compatible with spray foam insulation with an R-value up to 3.2 per inch. UL and cUL listings cover damp locations, and the CCEA marking ensures compliance with Chicago Plenum regulations for environmental air spaces outside of ducts and plenums.
The junction box includes seven ½” knockouts and one 5/8” knockout equipped with pryout slots, along with push-in electrical connectors for secure field connections. The housing accommodates ceilings from ½” to 1” thick, with optional ordering for ceilings up to 1 ½” thick. The Chicago Plenum new construction housing (2CPNC) incorporates patented Real Nail®3 telescoping bar hangers for precise positioning within 24” O.C. joists or suspended ceilings, including a removable nail for repositioning in wood joist construction and an integral T-bar notch and clip for suspended ceilings. The LED driver and trim module install directly into the 2CPNC housing using the provided conduit connector.
The 2-inch adjustable LED trim module provides a sophisticated, designer look that complements upscale residential and commercial interiors. When paired with a 2-inch driver housing, it produces up to 1000 lumens of bright white light while maintaining a low wattage profile. Available in adjustable gimbal trim, the modules are offered in black, bronze, nickel, unfinished, or white finishes, suitable for wet locations and compatible with multiple dimming protocols including 0–10V, forward phase, reverse phase, and Triac. This combination of compact form factor, precise optical control, and high-quality finish makes the 2-inch adjustable recessed LED downlight ideal for accent, task, or general-purpose lighting applications.
