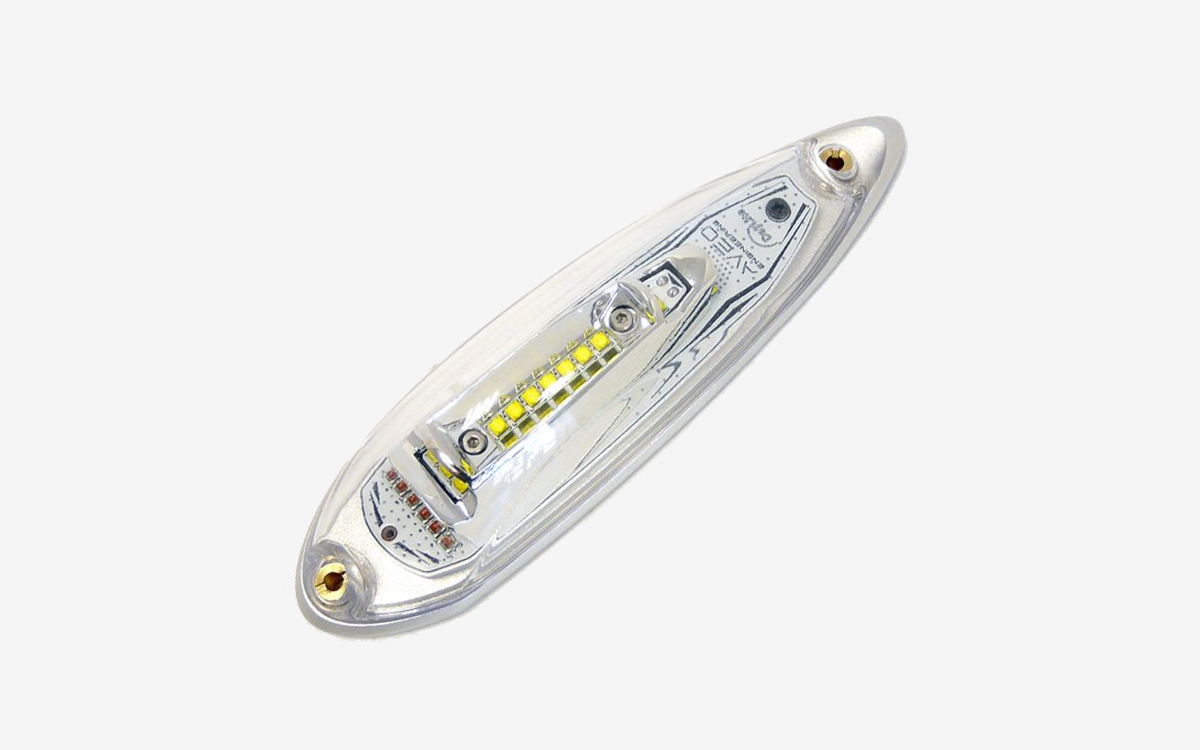

The Andromeda DayLite™ 14V is a high-performance LED navigation, position, and strobe light designed for wingtip installation. Standing at only 28 millimeters (1.102 inches) in height, this ultra-low-profile light is engineered to deliver exceptional visibility and reliability without compromising performance or build quality, despite its competitive price point. Unlike many economy-tier options on the market, the Andromeda DayLite™ integrates premium features such as advanced optics, a precision chrome reflector system, and sophisticated LED power management circuitry.
Engineered for maximum aerodynamic efficiency, the Andromeda DayLite™ is lower, narrower, shorter, and significantly lighter than most competing lights in its category, weighing just 82 grams (2.89 ounces). Its compact dimensions measure 134.7 mm in length, 33.6 mm in width, and 28 mm in height (5.303” x 1.323” x 1.102”), making it one of the most streamlined wingtip lighting options available.
Designed to operate within a voltage range of 9 to 18 V DC, the Andromeda DayLite™ delivers powerful illumination while maintaining energy efficiency. The green navigation/position function draws 0.35 A at 14V and consumes 4.9 watts, while the red version draws 0.33 A and uses 4.62 watts. The strobe function delivers a peak input current of 1.65 A and a peak power output of 23.1 watts, with a flashing rate of 50 cycles per minute for enhanced visibility during flight.
To ensure operational safety and longevity, the light is equipped with multiple layers of electronic protection, including overheat protection, reverse polarity protection, under-voltage and over-voltage protection, and tolerance for transient voltages up to 50 V DC for 1 second. Built to endure demanding aviation environments, it is fully waterproof, dust-proof, and vibration-proof, and functions reliably in extreme temperatures ranging from -40°C to +85°C (-40°F to +185°F). For installation, stainless steel M3 screws are recommended, with screw length determined by wingtip placement.
The Andromeda DayLite™ 14V offers a superior balance of compact form, durability, and high-output performance—making it a standout choice for aircraft owners seeking a cost-effective yet professional-grade wingtip navigation and strobe light solution.
