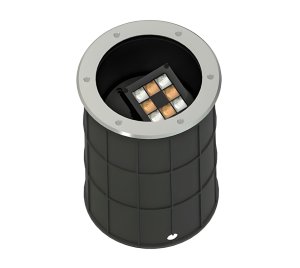

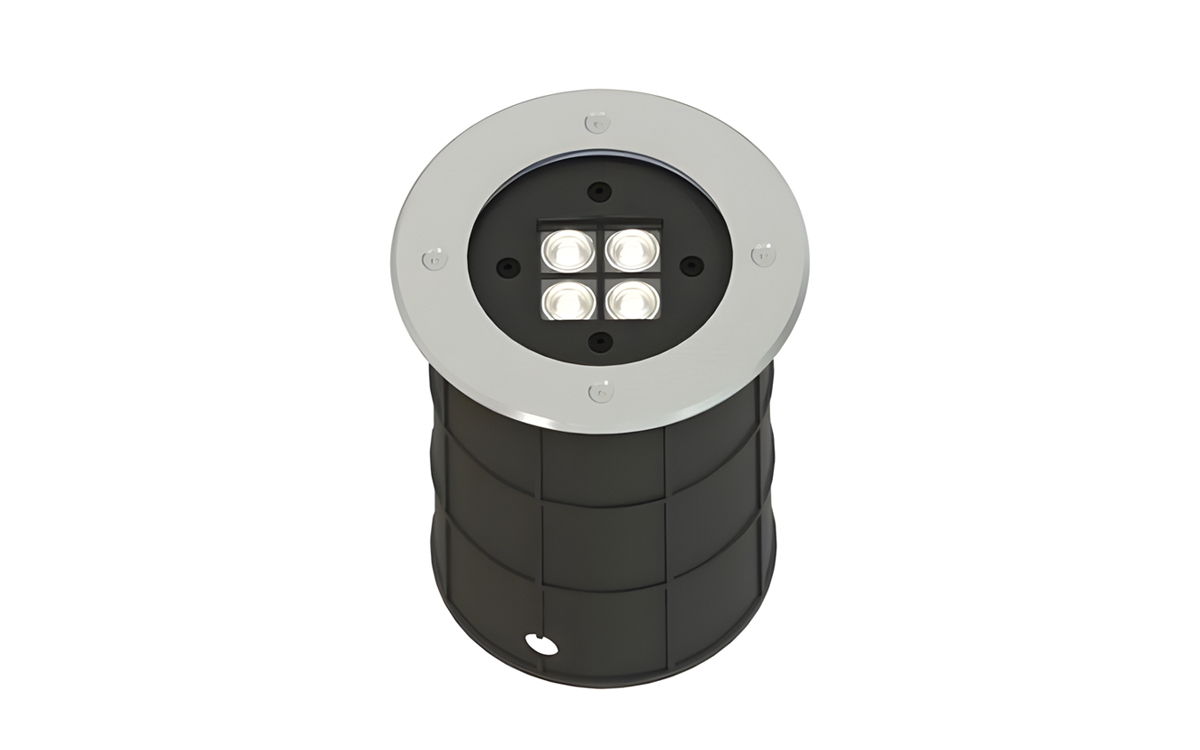

The Revo Compact Inground is a powerful and sustainable lighting fixture designed for versatility, durability, and long-term performance in outdoor environments. Engineered for in-ground installation, this compact 10-watt fixture delivers a high light output of up to 800 lumens, making it suitable for a wide range of architectural and landscape lighting applications. Its IP67-rated construction ensures excellent resistance to water and dust, while the IK10 impact rating guarantees robust protection against mechanical stress. A marine-grade stainless steel 316 front ring, stainless steel screws, and a corrosion-resistant housing ensure lasting durability in challenging outdoor conditions.
With more than 200 different configurations available, the Revo Compact Inground offers exceptional flexibility. It supports a wide array of LED colors including warm to cool white (2200K–6500K), as well as vibrant amber, red, green, blue, and lime green options. A diverse selection of interchangeable optics—ranging from narrow 8° and 12° beams to wide 61° and elliptical 12° x 46°—allows for precise beam shaping on-site. The optics can be swapped out quickly and easily, enabling fine-tuned lighting effects directly during installation or maintenance.
Designed for sustainability, the Revo Compact Inground is future-proof: all internal components are modular and easily replaceable, so the fixture can be upgraded or repaired without needing full replacement. This not only extends its usable life but also minimizes environmental impact. It also features a ventilation gland with a Gore-Tex membrane to prevent internal condensation, ensuring consistent optical performance and long-term reliability in wet or humid conditions.
The fixture is available in multiple power supply versions—24 VDC, 100–132 VAC, and 180–264 VAC—with an internal driver included for streamlined setup. Installation requires a 16.6 cm mounting hole and a depth of 19.8 cm, and it comes with a 200 cm cable with an open end for flexible connection. Operating in ambient temperatures from -10°C to 40°C, the Revo Compact Inground is CE certified and rated for use in dry, damp, or wet locations, making it an ideal solution for demanding exterior lighting projects.
