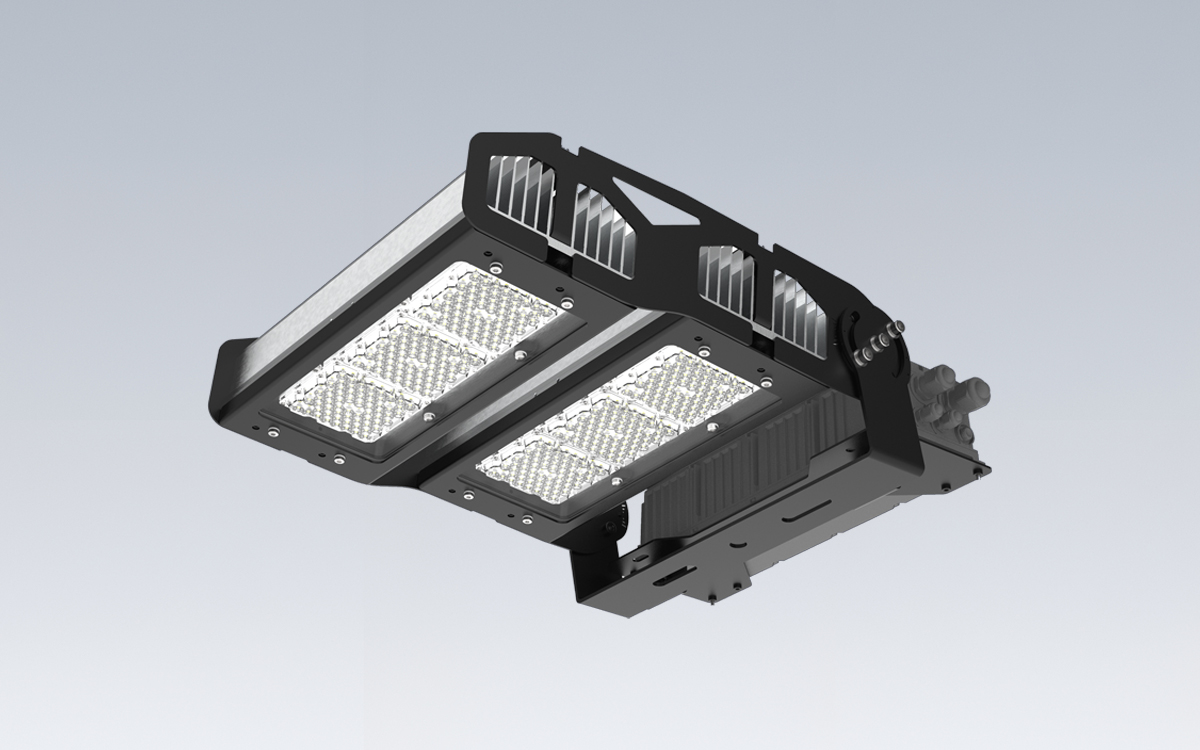

The MR16 LED sports floodlight from Midstream Lighting delivers a powerful lumen output of up to 245,000 lumens while maintaining a lightweight form factor, making it ideal for high-demand sports venues and large-scale event applications. Its stainless steel construction enhances structural integrity and longevity, ensuring the floodlight performs reliably under harsh environmental conditions. Manufactured in Europe and stocked for rapid delivery, the MR16 offers a robust and dependable solution for professional lighting needs.
This floodlight features a modular design, allowing for flexible and tailored installations across a variety of sports venues and event environments. The integration of DMX and DALI control systems enables precise event lighting management, including dimming and dynamic light shows, giving facility managers full control over lighting scenes. Specialist light shields are included as standard, reducing glare, controlling light spill, and increasing uniformity to improve the viewing experience for players and spectators while minimizing disturbance to surrounding areas.
The MR16 floodlight is certified IP66, providing maximum protection against dust and powerful waterjets, and its single remote driver is also outdoor-rated for easy access and maintenance. The floodlight’s optical system includes anti-yellowing PMMA refraction lenses and a 4 mm tempered glass screen, ensuring consistent performance over the lifetime of the fixture. With a total of 384 LEDs, the luminaire maintains high efficacy at 146 lm/W and long lifespan, with L90 rated at 90,700 hours and L70 exceeding 140,000 hours.
The floodlight’s body and bracket are constructed from stainless steel 3Cr12, with an optional AISI 316 version for additional corrosion resistance, and finished with a black anti-corrosive primer and powder coating. Anodized extruded aluminum heatsinks optimize thermal management, while the bracket provides multiple mounting points for versatile installation. The MR16 floodlight has a total weight of 27 kg and compact dimensions of 571 x 618 x 176 mm, with a windage effective projected area (EPA) of 0.266 m².
The remote driver unit weighs 6.9 kg (7.5 kg with bracket) and can be installed at the mast base or on the bracket, protected to IP66 against powerful waterjets. Electrical specifications include input voltage options of 220–440 V AC at 50/60 Hz, a power factor of 0.95, driver efficiency of 95.5%, and integrated surge protection (10 kV line-earth, 6 kV line-line), short circuit auto-recovery, and overheat protection that reduces output current when necessary. The MR16 floodlight operates in ambient temperatures from -40°C to +50°C and humidity ranges from 5% to 94%, making it suitable for a wide variety of outdoor sports and event applications.
This combination of high lumen output, precision optics, long service life, and rugged construction positions the MR16 LED sports floodlight as an ideal choice for stadiums, arenas, and large-scale event venues requiring reliable and controlled lighting performance.
https://www.midstreamlighting.com/products/master-mr16/
