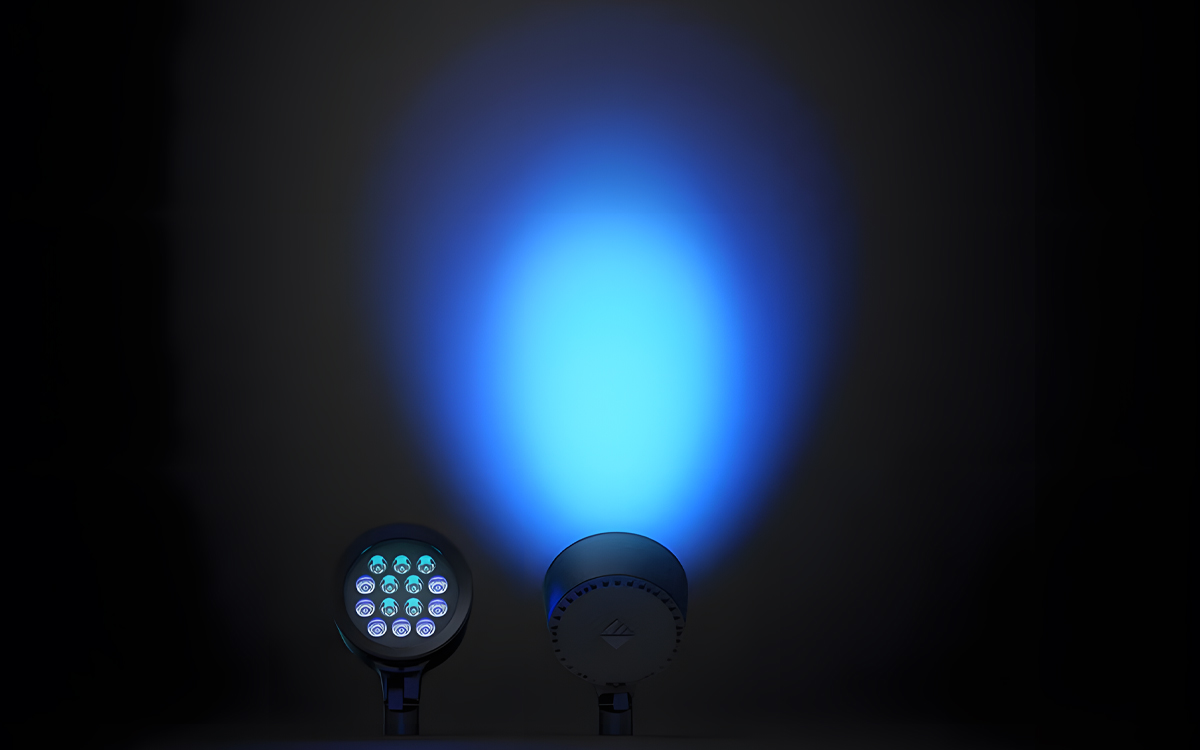

The SAF14F RGBW LED flame floodlight introduces a patented FLAME lighting technique that creates distinctive accent gradient effects from a single fixture, blending color or mixing white lighting with a pop of color. This architectural LED floodlight combines luminous performance with RGBW technology, offering high color saturation without striations or color separation. The FLAME technique delivers unique visual effects through two-color distributions, including Narrow Flame (30° outer beam with 10° central beam), Wide Flame (70° outer beam with 30° central beam), and Lotus Flame (70° outer beam with 10° central beam). Each beam is independently controlled via two DMX circuits, allowing precise color and intensity control.
The SAF14F RGBW LED flame floodlight supports DMX512 control with an RDM option, making it compatible with a wide range of controllers and network devices for both performance and architectural lighting applications. The floodlight utilizes Taper-Lock technology with a rugged knuckle and yoke design, providing full aiming integrity and infinite adjustment capabilities. Its industry-leading Flow-Thru design, achieved with separately sealed optical and driver compartments, ensures waterproof performance and minimal maintenance over decades of use, making it suitable for wet location installations in outdoor environments. The fixture is IP66 rated, with an optional IK10 impact rating, and supports mounting on ground, wall, pole, stanchion, or tree structures.
Optically, the SAF14F RGBW LED flame floodlight offers precise control of light distribution, with a slightly convex watershed lens that prevents water buildup and staining. Quad chip technology ensures optimal color mixing under each individual optic, maintaining color fidelity for wall grazing, washing, or accent applications. The floodlight emits 1300–1350 lumens with RGBW LED color, and a white color temperature of 4000K at 80 CRI. It operates at 65 watts with a voltage range of 120–277V and offers wide flexibility in beam spreads to suit multiple architectural and landscape scenarios.
Constructed from die-cast copper-free aluminum (A360), the housing and doors include separate optical and driver compartments to isolate thermal loads from electronic drivers. The lens is molded from heat-strengthened borosilicate glass for superior clarity and impact resistance. Mounting hardware consists of an adjustable knuckle (1/2” NPT) and yoke (7/8” thru hole center with additional thru holes), with aluminum components and stainless steel locking hardware. Power and control connections are provided via 18-gauge 6-conductor ST cord for yoke mounts or 18-inch leads for knuckle mounts. External glare control options include full or half glare shields, while an impact-resistant rock guard is available for additional protection.
Electrically, the SAF14F RGBW LED flame floodlight incorporates an MVOLT (120–277V) Class 2 LED power supply, consuming 64.7 watts with L83 lumen maintenance of 100,000 hours at 25°C. The system supports an 8-channel DMX control layout, where channels 1–4 control the outer beam and channels 5–8 control the center beam. Power factor exceeds 90%, total harmonic distortion is below 20%, and 6KV surge protection meets ANSI/IEEE C62.41.2 Category C low operation. The exterior is finished with a zinc-infused TGIC thermoset powder coat, achieving a minimum 3-mil thickness to resist corrosion, weathering, and extreme climates without cracking or peeling.
The SAF14F RGBW LED flame floodlight delivers an all-round solution for architectural and landscape lighting with superior color performance, customizable beam effects, precise DMX control, and long-lasting durability. Its patented FLAME technique sets a new benchmark for color mixing and gradient effects in architectural floodlighting, suitable for ground, wall, pole, stanchion, and tree-mounted installations in both indoor and outdoor environments. The fixture qualifies under the Buy American Act, Build America Buy America, and DOT Buy America regulations, ensuring compliance for government procurement projects.
