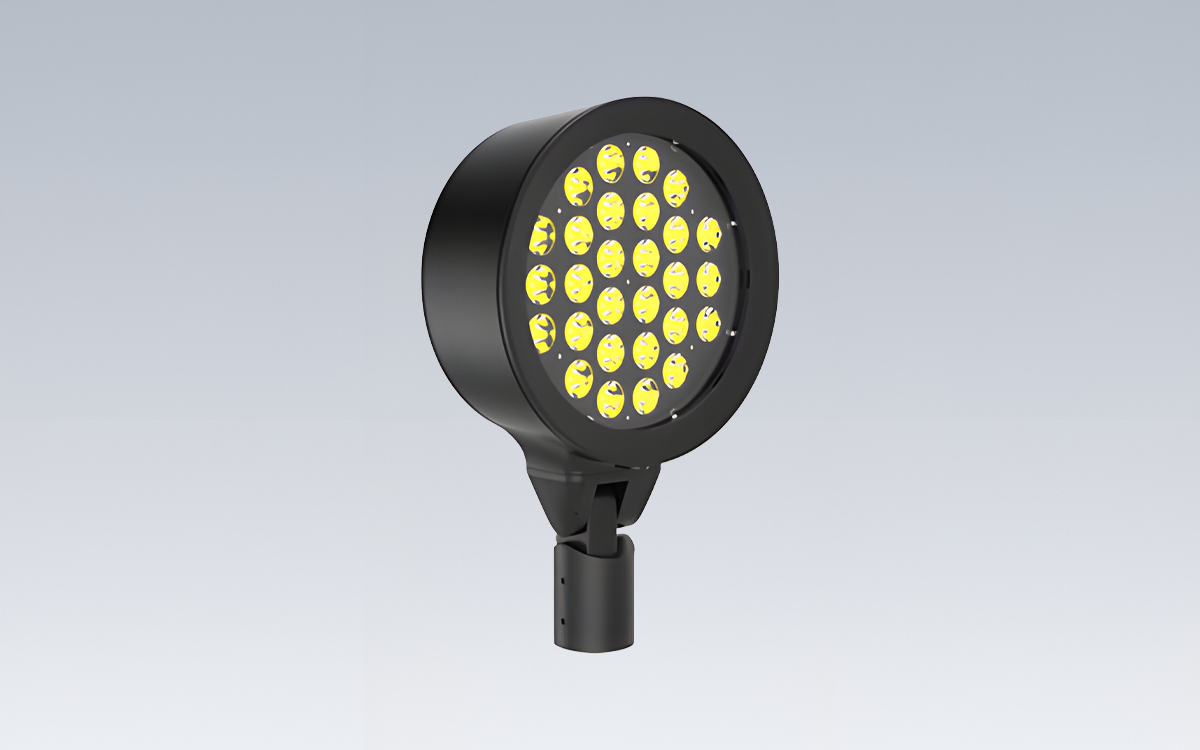

The SAF28 RGB LED floodlight combines powerful dynamic color output with a minimalist exterior and a rugged construction engineered for demanding outdoor environments. Its precision illumination delivers up to 4,500 lumens and supports a wide selection of distributions—ranging from 10º narrow beams to 100º wide beams, along with vertical-by-horizontal variations such as 15ºV x 60ºH, 30ºV x 60ºH, 60ºV x 15ºH, and 60ºV x 30ºH. These optical choices enable controlled spotlighting, uniform wall-washing, and broad floodlighting, allowing the fixture to accentuate architectural details, highlight landscape features, or completely transform surfaces with saturated RGB color. Molded heat-strengthened borosilicate glass ensures clarity and durability across all optics, while the RGB LED engine supports unlimited color selection for applications requiring dynamic visual impact.
The fixture integrates fully with DMX/RDM control, providing smooth color transitions, remote addressing, and advanced fixture monitoring in theatrical, architectural, and landscape lighting systems. Its dynamic LED source is available in lumen packages of 4,000 lm and 13,000 lm with wattages of 130W, 163W, and 172W, while the MVOLT 120–277V driver ensures compatibility with a wide range of electrical infrastructures. The Class 1 electronic driver offers a power factor greater than 90%, THD below 10%, an expected life of 100,000 hours, and L83 performance at 100,000 hours at 25°C, supported by a 10kV surge protection system that meets ANSI/IEEE C62.41.2 requirements. The fixture is listed for wet locations, carries cCSAus and NOM certifications, and provides an IK10 option along with an IP68 protection rating for extreme outdoor conditions.
Construction features include a die-cast copper-free aluminum housing and door with separate optical and driver compartments to maintain thermal isolation and support long-term LED stability. The fixture incorporates an industry-leading flow-thru design that uses independently sealed chambers to enhance heat dissipation and weather resistance. Exterior surfaces are finished with a zinc-infused super-durable TGIC thermoset powder coat, applied through a multi-stage process that produces a minimum 3-mil coating capable of resisting corrosion, abrasion, and severe climate exposure without cracking or peeling. Available colors include black, bronze, green, silver, and white, enabling the luminaire to blend naturally into a wide range of architectural and landscape environments.
A key mechanical attribute of the SAF28 RGB LED floodlight is its Taper-Lock technology, which provides full aiming integrity through a rugged knuckle and yoke design that prevents drift even under vibration or extreme weather. Mounting options include yoke, pole mount, tenon slipfitter, ground, wall, and stanchion accessories. The adjustable knuckle fits 2–3/8" O.D. tenons, while the yoke utilizes a 7/8" center through-hole and additional 7/16" holes for secure mounting. Yoke-mount models are supplied with 10'–50' of 18-gauge, 6-conductor ST cord for both power and control, while knuckle-mount variants include 18" leads for power and 22-gauge control wiring, along with a standard 24" safety cable. Glare control accessories include full and half shields, and an impact-resistant grid rock guard is available for added protection in public or rugged environments.
Suitable for architectural façades, landscape accents, area highlighting, and large-scale RGB display applications, the SAF28 RGB LED floodlight offers smooth integration into any setting while enhancing visual impact with dynamic color. The product is qualified under the Buy American Act and Build America, Buy America requirements as a domestic end product manufactured in the United States.
