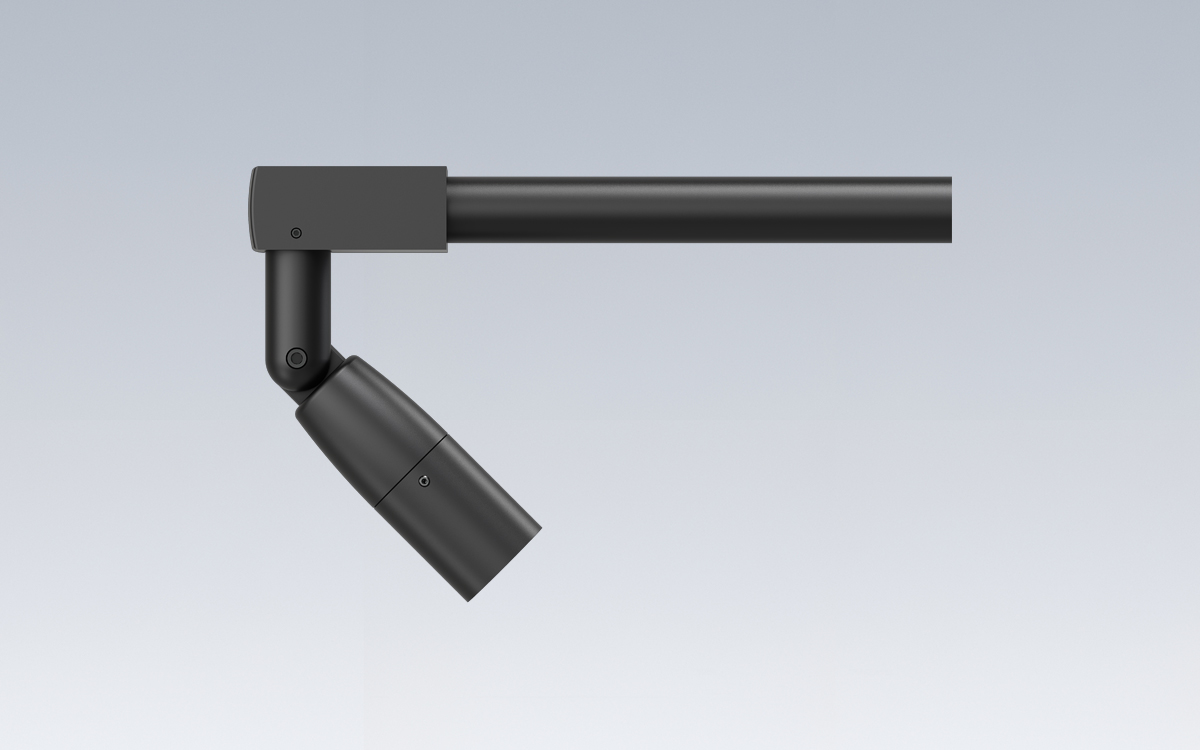

The Taylor LED sign light is a commercial, low-voltage accent luminaire built for indoor and outdoor use in wet location environments rated to IP66. Its design supports the lighting of small signs and the highlighting of architectural features, with flexibility for ground, wall, or ceiling mounting depending on project requirements. As a 12V LED static source, Taylor delivers up to 360 lumens and maintains consistent output when supplied with 11VAC–14VAC, helping to counteract voltage drop in low-voltage installations. The luminaire supports both 80CRI and 90CRI light engines, with all LEDs held within 3 MacAdam ellipses to maintain tight color quality across installations.
Taylor offers multiple optical distributions suited to targeted sign and façade lighting, including Flood, Narrow Flood, and Spot options, with beam angles available in 15°, 25°, and 40°. Its FLC and WSL borosilicate glass lenses provide superior clarity and strength, with the WSL option designed so the top of the door and glass are flush to encourage water shedding across exposed exterior surfaces. The luminaire’s tapered Sure Lock knuckle, machined from 6061-T6 aluminum, allows infinite aiming while providing exceptional locking stability, supporting precise alignment for small signage, architectural accents, and controlled façade highlights. Mounting options include knuckle and surface configurations, and each unit is supplied with 48 inches of 18AWG connection wire for straightforward integration.
Lighting control flexibility is built into the 12VAC architecture, with dimming supported through standard MLV dimmers paired with a remote magnetic transformer. The luminaire's power supply requirements ensure smooth low-voltage dimming performance in both residential and commercial sign lighting applications. The fixture’s cast 356-T6 aluminum body and cap, combined with a super durable polyester TGIC powder coat finish or optional brass finishes, provide long-term durability in demanding outdoor environments. Taylor is available in multiple finishes including Black, Bronze, Gray, Green, Silver, and White.
The product is listed to cCSAus requirements for wet locations, with testing performed to UL-1598, UL-8750, and UL-1838 standards. Taylor also meets government procurement requirements under BAA and BABA, qualifying as a domestic end product and as a United States-manufactured lighting solution suitable for federally funded projects.
