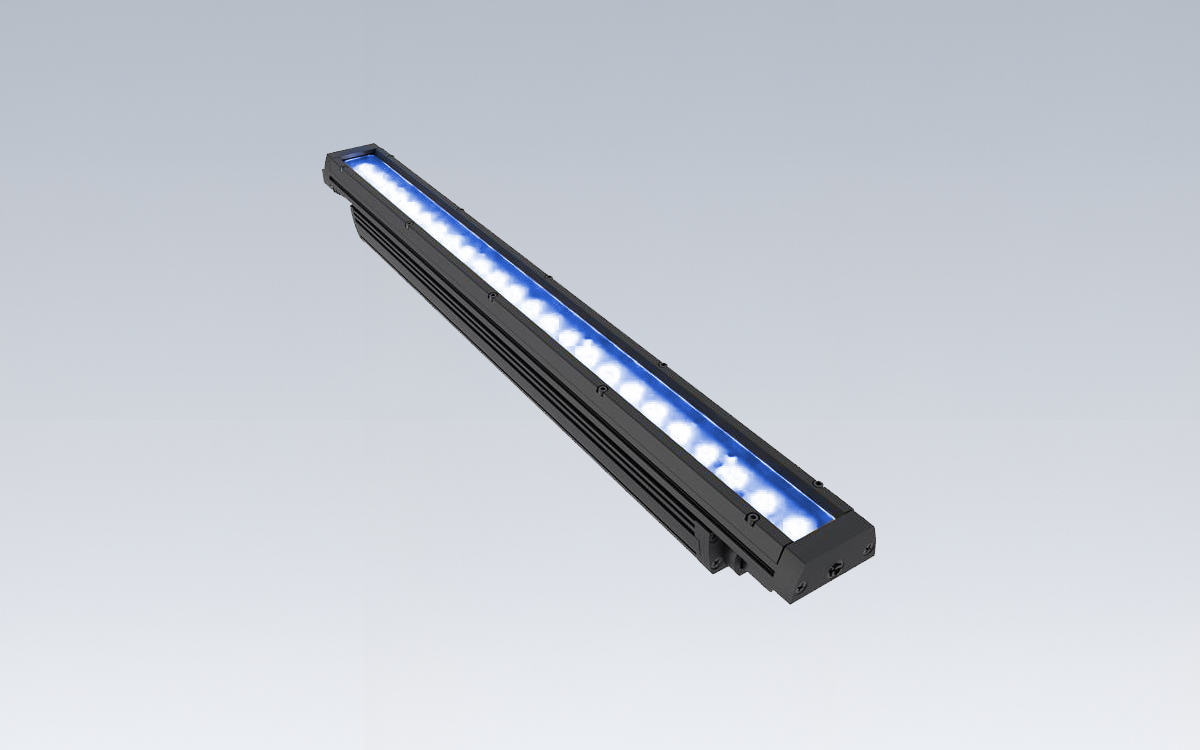

The HYCOVE502 is an exterior linear static white and color LED wall washing and grazing light, engineered to provide precise and uniform accent lighting across architectural surfaces. With a low-profile design, this outdoor linear accent luminaire excels in flood lighting, grazing, or wall washing applications, delivering exceptional beam control while maintaining a compact housing. The fixture is available in 2 ft, 3 ft, and 4 ft lengths, offering flexibility for both short and continuous runs, and is suitable for wet location installations with IP66 ingress protection. Its robust extruded aluminum one-piece housing ensures long-term durability, and finishes include black, silver, or white powder-coated options, paired with color-matched fasteners to complement the chosen finish. The lens is made of frosted extruded acrylic, providing soft and even light distribution with a 120° x 120° beam spread.
The HYCOVE502 operates on 120–277V, 50/60Hz and supports static white and RGB color mixing. Static white LEDs are available in color temperatures of 2700 K, 3000 K, 3500 K, 4000 K, and 5000 K, while color LEDs include amber limited wavelength, blue, green, and red. CRI values of 80 or 90 ensure high-quality color rendering. The fixture uses twelve LED diodes per foot, providing even, continuous illumination, and long lumen maintenance of 60,000 hours for white LEDs and 120,000 hours for static color LEDs at L70, +55°C ambient. Light output ranges from 300 LM to 1000 LM per segment, making it suitable for both subtle wall washing and more prominent accent lighting applications.
The HYCOVE502 supports multiple lighting control protocols, including 0-10V, DALI, and DMX, allowing for versatile brightness and color management. DMX512 networks enable dynamic lighting with vibrant colors and movement, supporting complex installations such as building façades, hotel lobbies, corporate reception areas, theaters, and performance spaces. Network devices from Pathway Connectivity facilitate secure and robust routing of DMX, RDM, nLight®, and 0-10V signals, ensuring reliable integration across large-scale or multi-zone installations. The system can be controlled via DMX512-compatible controllers such as Easyl or Fresco, providing precise manipulation of static and color outputs for both functional and aesthetic purposes.
Mounting options include niche, surface, side hinge, center axis, and fixed brackets, allowing precise aiming and alignment to walls, ceilings, or architectural features. The fixture is rated for operation in extreme ambient temperatures ranging from -40° to +50°C and is 3G vibration rated per ANSI C136.31, ensuring durability in demanding outdoor conditions. The HYCOVE502 can be arranged in continuous runs using three flexible methods: Linear Same Length (LSL) for standardized segments, Linear Center Balanced (LCB) for balanced rows with center-longest segments, or Linear Longest Possible (LLP) for minimal segments and mounts, accommodating complex design requirements while maintaining visual uniformity.
The HYCOVE502 qualifies under the Buy American Act (BAA), DOT Buy America regulations, and Build America, Buy America Act (BABA), verifying it as a domestically produced product. This linear wall washing and grazing luminaire combines precise optical control, versatile lighting protocols, robust housing, and long service life, making it ideal for architectural accent lighting in both commercial and high-demand exterior environments.
