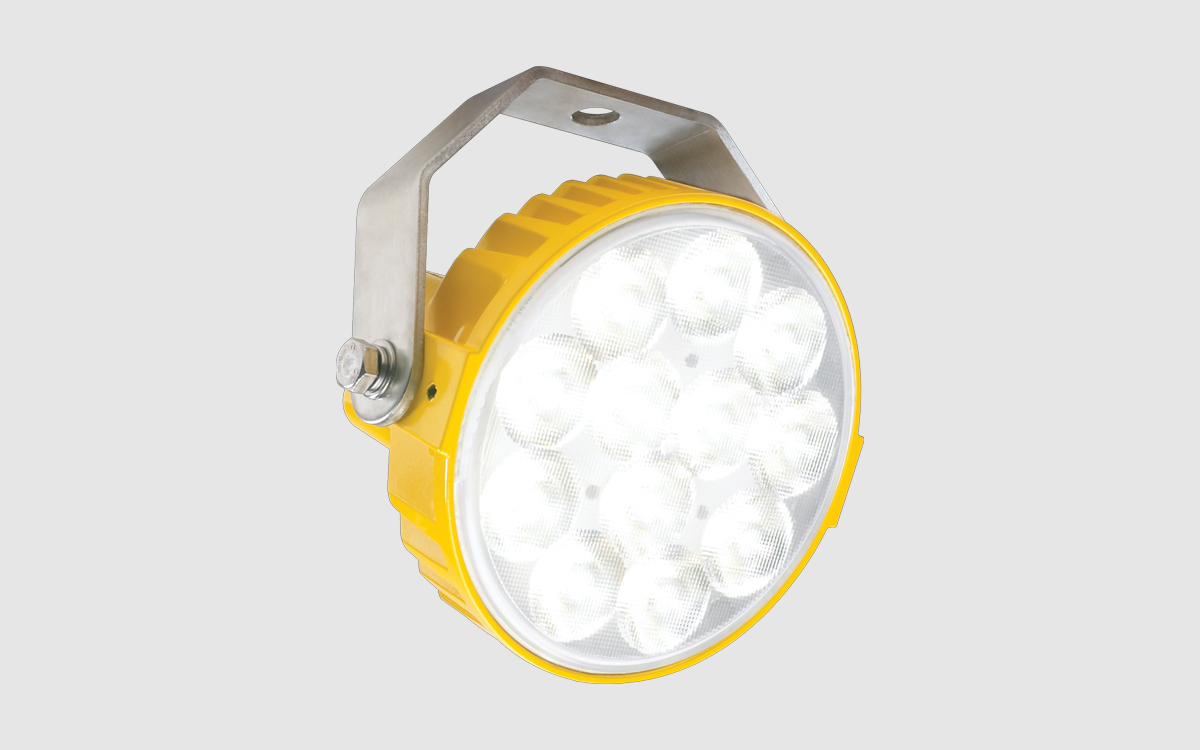

The DLA 2 is a rugged cast aluminum loading dock light engineered to withstand the tough conditions of busy loading docks. Built for durability, it is designed to endure accidental impacts from forklifts, dock doors, and other equipment while maintaining consistent performance. This fixture features energy-efficient integrated LEDs with an optimized 25° square beam angle, providing superior illumination for the full interior of a trailer. Its compact design and durable construction make it an ideal choice for both retrofits and new installations. For retrofitting, the DLA 2 offers the convenience of an on/off push-button switch located directly on the head, allowing seamless compatibility with any existing dock light arm.
For new construction projects, the DLA 2 pairs perfectly with Modular docklite® loading dock arms to form a complete and adaptable lighting solution. These arms are available in 40-inch and 60-inch double strut lengths, offering flexible reach and positioning for different dock layouts. Regardless of configuration, the fixture delivers a high-output 1,100 lumens of neutral white 4000K light from just 9 watts of power, ensuring bright, clear visibility while minimizing energy consumption.
The DLA 2 is designed for reliability in extreme environments, with an operating temperature range of -40°C to +50°C. Its housing is constructed from cast aluminum with a safety yellow powder coat finish for high visibility and added safety. The impact-resistant clear polycarbonate lens shields the LEDs from damage while ensuring optimal light transmission. The stainless steel mounting bracket provides a secure installation, with a 0.53-inch (13.5 mm) mounting hole clearance for compatibility with standard hardware.
The fixture comes standard with a 22-inch (559 mm) cord and a recessed 3-prong IEC type (C-14) plug, supporting 120V, 60Hz power. An optional NEMA 5-15 plug is also available. Built to meet demanding compliance standards, the DLA 2 is ETL/cETL Certified to UL 1598 for wet locations and CSA C22.2 No. 250-08. It carries an IP66 rating for water and dust resistance, as well as an IK10 impact rating for maximum durability. With a 50,000-hour rated life and LM79/LM80 performance data available, the DLA 2 offers a long-lasting, dependable lighting solution for loading dock environments where performance and resilience are critical.
