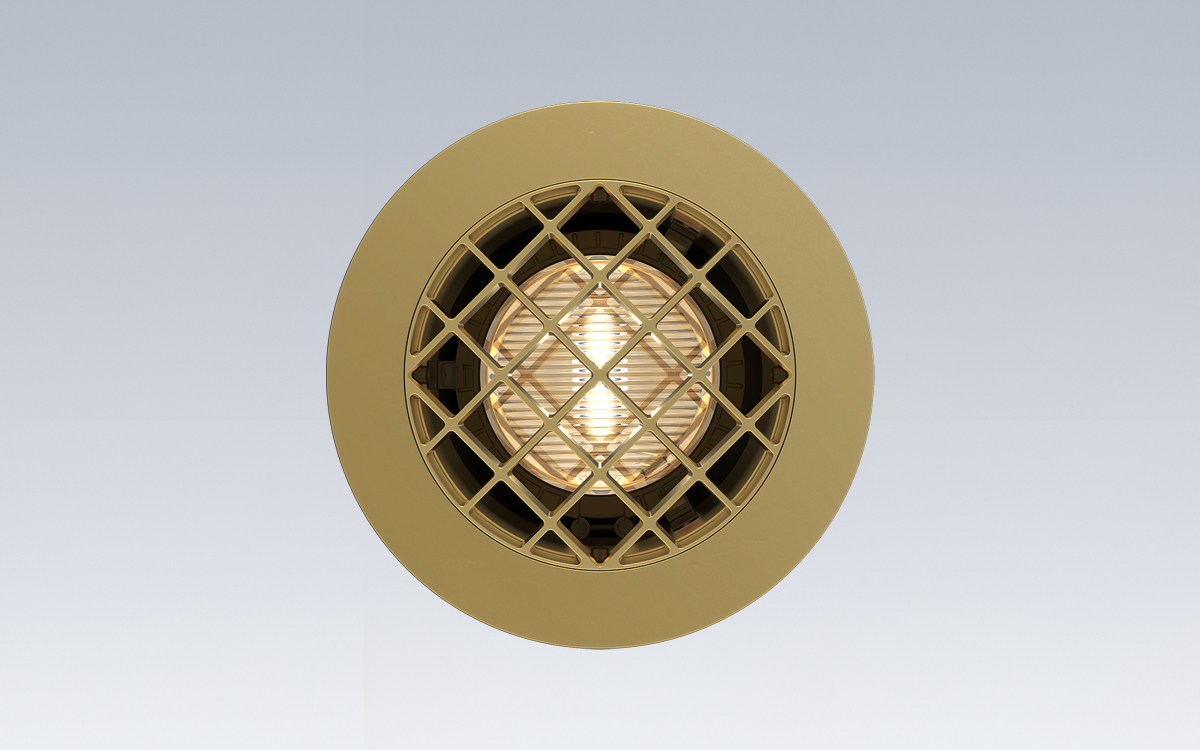

The 9360DO LED drive-over ingrade well light is engineered for applications that demand the subtlety of an ingrade luminaire without compromising durability. Designed to withstand heavy commercial traffic, this fixture has been rigorously tested by the Department of Transportation (DOT) and meets vertical and lateral load requirements up to AASHTO HS20 standards, accommodating 20-ton trucks with wheel loads of 16,000 lbs. at speeds up to 15 miles per hour. Its robust construction ensures reliable performance in high-traffic environments, making it a versatile solution for both commercial and institutional settings.
Structurally, the 9360DO features a cast bronze frame paired with a stainless steel well, allowing for specification of either flange-up or flange-down configurations at the time of order. The lamp module housing is crafted from stainless steel and is sealed and purged of moisture to withstand temperatures up to 100°F (38°C), while electrical access is provided through a submersible-rated connector. The LED lamp module itself uses monochromatic LEDs in 12W configurations, all maintained within three MacAdam ellipses to ensure consistent color quality. The flat lens is made from tempered borosilicate glass, providing both optical clarity and durability under load.
The fixture supports multiple lighting distributions, ranging from very narrow 14° spot beams to wide flood patterns, including horizontal flood, medium flood, and horizontal spot options. This versatility allows precise control over light placement, whether for focused accent lighting or broader area illumination. The 9360DO also offers flexible dimming options, supporting both in-line “Dims to Dark” and 0-10V protocols, as well as forward phase dimming, enabling seamless integration into modern lighting control systems. Color temperatures are available in 3000K, 4100K, 5300K, as well as phosphor-converted amber, blue, green, and red, while the fixture achieves CRI ratings of 70 or 80, balancing color fidelity and efficiency. The LED driver is encapsulated in a custom heat-dissipating epoxy resin, providing additional moisture protection and long-term reliability, with submersible-rated cord leads facilitating connection to the integral junction box and lamp module.
The 9360DO is ideally suited for applications where vehicle and pedestrian traffic intersect with the need for high-quality, discreet lighting. Common installation sites include hospital entry driveways, warehouse and distribution center parking areas, vehicle inspection stations, car lots, and border crossings. Its wet-location rating and rugged construction ensure dependable performance in a variety of outdoor and indoor environments, while the optional potting compound (PC21) is recommended for junction box splices to further enhance durability.
Meeting regulatory and procurement standards, the 9360DO is listed under CSA, CSAus, and UL. It is a domestic end product compliant with the Buy American Act (BAA) as implemented in FAR and DFARS, and it qualifies under DOT Buy America regulations, as well as the Build America, Buy America (BABA) Act. The fixture operates on MVOLT (120–277V, 50–60Hz) and supports bottom conduit entries suitable for through-branch wiring, making it adaptable to complex electrical layouts. With its combination of strength, precise optical performance, color versatility, and advanced lighting control, the 9360DO drive-over ingrade well light provides a robust, flexible solution for high-performance site illumination.
